Customized Request Batch Processing Line Frozen Yogurt Machine for Heating and Cooling

Model NO. : yogurt machine

Application : Milk, Yogurt, Cheese

Customized : Customized

Power : 318V,50Hz , Customized Optional

Capacity : 1000lph,2000lph,3000lph,4000lph,Custmized Optional

Certificate : ISO

Overseas Installation : Available

Transport Package : Wood Carton

Specification : customized

Trademark : CN

Origin : Jiangsu, China

HS Code : 8434200000

Supply Ability : Customized

After-sales Service : Available

Warranty : Available

Process : Batch Processing Line

Power Source : Electric

Certification : CE

Automatic Grade : Semi-Automatic

Samples : US$ 50000/Piece 1 Piece(Min.Order) | Request Samp

Customization : Available | Customized Request

MOQ : 1pc

Delivery Time : 5-8 days

Payment Terms : L/C, T/T

Contact Now

Manufacturer Commercial Solid Yogurt Maker Machine Fermentation Equipment Frozen Yogurt Machine
Customized Request Batch Processing Line Frozen Yogurt Machine for Heating and Cooling

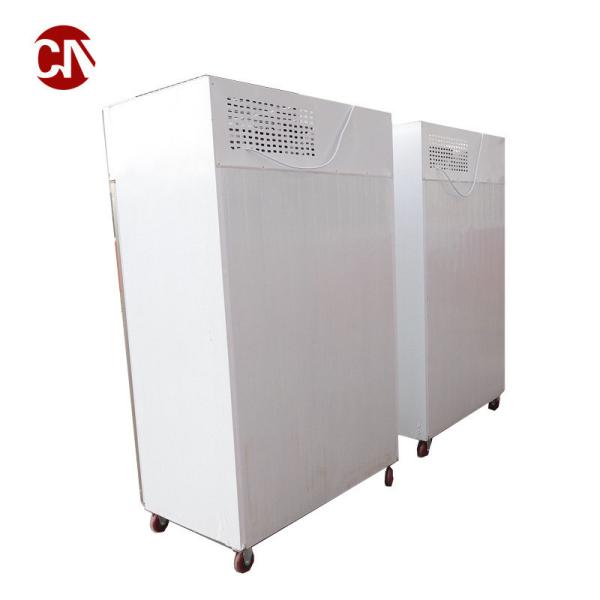

Description of Machine

The commercial yogurt machine is a fuly automatic intelligent machine with fermentation, maturation,disinfection, and refrigeration functions. it is used to make fresh milk into various yogurt products. it consistsof a box, a door, a working room, and an Ozone sterilizer. it is composed of bacteria, circulation fan and controsystem. The equipment models are divided into single door and double door, suitable for different outputs.The finished product of the yogurt machine is solid yogurt, also called old yogurt.

Dairy product technology

old yogurt
1. After pasteurization at 85 degrees (no need to stir before 50 degrees during the sterilization process, stir every 15 minutes after 50 degrees), warm the milk to 72 degrees and add sugar (soft white sugar, you cannot use sanded milk. 50kg milk ratio is 3.1kg soft white sugar. When adding, first find a small container, use milk to fully dilute the sugar and mix well, then pour it into the milk jug).
2. Cool the temperature to 45 degrees and add the bacteria. Use a small container to pour 0.5kg of milk and the bacteria, dilute it thoroughly and mix well. Then pour it into the milk tank. After stirring for 3 minutes, let it sit for 5-10 minutes.
3. Insert the paper cup into the yogurt machine.
4. Before operating the yogurt machine, use 75% medical alcohol to spray and sterilize the operating table and yogurt machine (if other bacteria contaminate the yogurt, the surface of the yogurt will be uneven).
5. After spraying with alcohol, open the door for about 2-3 minutes to remove the alcohol smell, and then turn on the sterilization lamp for sterilization (the sterilization time has been set at the factory)
6. Ferment for 8 hours at about 42 degrees to 43 degrees. After fermentation, if you don't stir it, it will be a solidified old yogurt. If you stir it, it will be a thinner yogurt.
8. Refrigerate at 4 to 6 degrees for no less than 10 hours (theoretical requirement is for a total of 24 hours of cooling); cooling from 43 to 4 to 6 degrees, no more than 6 hours is normal; if the refrigeration time is short, the yogurt will not fully solidify , the whey cannot be absorbed, it is like water). The standard method is to use a yogurt machine to ferment and then put the yogurt in a fresh-keeping cabinet for refrigeration. Note: The methods of ordinary yogurt and old yogurt are basically the same. If you want some liquid yogurt, you can stir the yogurt halfway after fermentation and then refrigerate it,refrigeration.

Pre-heating tanks - Filter- High Pressure Homogenizer - Pasteurizer - Pre-cooling- Cup Filling Machine- Solid Yogurt Making Machine

Specifications

Model	Single Door Yogurt Machine	Dual Door Yogurt Machine	Three Door Yogurt Machine
Control Panel	Touch Screen	Touch Screen	Touch Screen
Voltage	220V	220V	220V
Heating Power	1 kw	2 kw	3 kw
cooling Power	0.3 kw	0.3 kw	0.4kw
Compressor	Donbei	Dongbei	Donbei
Machine Size	6507001950mm	12007001950mm	18007001950mm
Refrigeration Temp	0-8 degree	0-8 degree	0-8 degree
Fermentation Temp	0-60 degree	0-60 degree	0-60 degree

Details :

Customized Request Batch Processing Line Frozen Yogurt Machine for Heating and Cooling

Related Products:

20Ton/Hour Milk, Yogurt Production Line Equipment

Customized Request Batch Processing Line Frozen Yogurt Machine for Heating and Cooling
500L Milk or Yogurt production Line Equipment

Application:
Customized Request Batch Processing Line Frozen Yogurt Machine for Heating and Cooling

Company Introduction:

Chun Nuo Intelligent Manufacturing (Shanghai) Technology Co., Ltd.

Established in 2014 in Jiading District, Shanghai. We have our own production base,which located in Yangzhou City, Jiangsu Province. Our company is mainly engaged in the food, beverage, beer, condiments, pharmaceutical and chemical industries, and is responsible for the design, production and manufacturing of complete line equipment for fluid food turnkey projects. The main equipment includes pasteurizer, UHT sterilizer, Mixing Tank System, CIP systems, stainless steel tanks, Aseptic tanks, aging tanks, cheese Jar and Cooling tank, various types of individual equipment.

We have a large number of professional and technical personnel and technical service teams with many years of installation experience at home and abroad. We have undertaken the overall installation of many large-scale projects. The company provides world-class professional engineering installation experience and management experience in a work spirit of excellence. , provide users with good after-sales service and wholeheartedly meet user requirements. Professionals are the foundation of good service. Our after-sales service personnel have practical experience and system training in equipment use and maintenance, and truly master professional knowledge and on-site processing skills. method.

Exhibition:

Certification:

Shipment:
Customized Request Batch Processing Line Frozen Yogurt Machine for Heating and Cooling
FAQ:

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q2: Do you have after-service stations?
A2: our engineer can go to overseas for aftersales service
Q3: Do you provide customized service
A3: We can design the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
